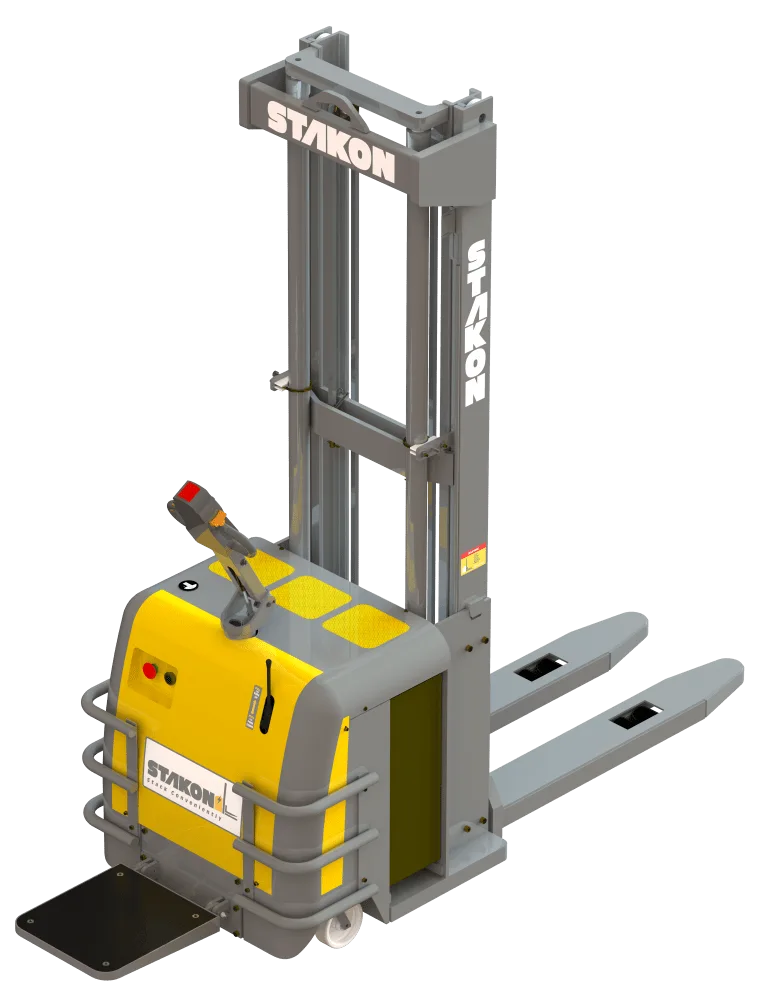

A state of the art 2 stage fully electric Stacker which can go up to 3.6 meters height without any deflection at the top. The machine is fitted with CURTIS/ZAPI Control, AC drive and European Hydraulic Unit ensuring trouble free performance for long period.
STAKON
FE 1536D
1500 Kg / 3.6 mts
SPECIFICATIONS
STAKON FE 1536D
| 1 | Model | FE-1536D-(S) |
|---|---|---|
| 2 | Mast Type | CT-90 Telescopic |
| 3 | Power-Lift | Electric |
| 4 | Power-Travel | Electric |
| 5 | Load Capacity | 1500 Kg (Max) |
| 6 | Load Center | 600 mm |
| 7 | Wheel Base | 1485 mm |
| 8 | Wt Un-Laden | 1370 Kg |
| 9 | Wt. Laden | 2870 Kg |
