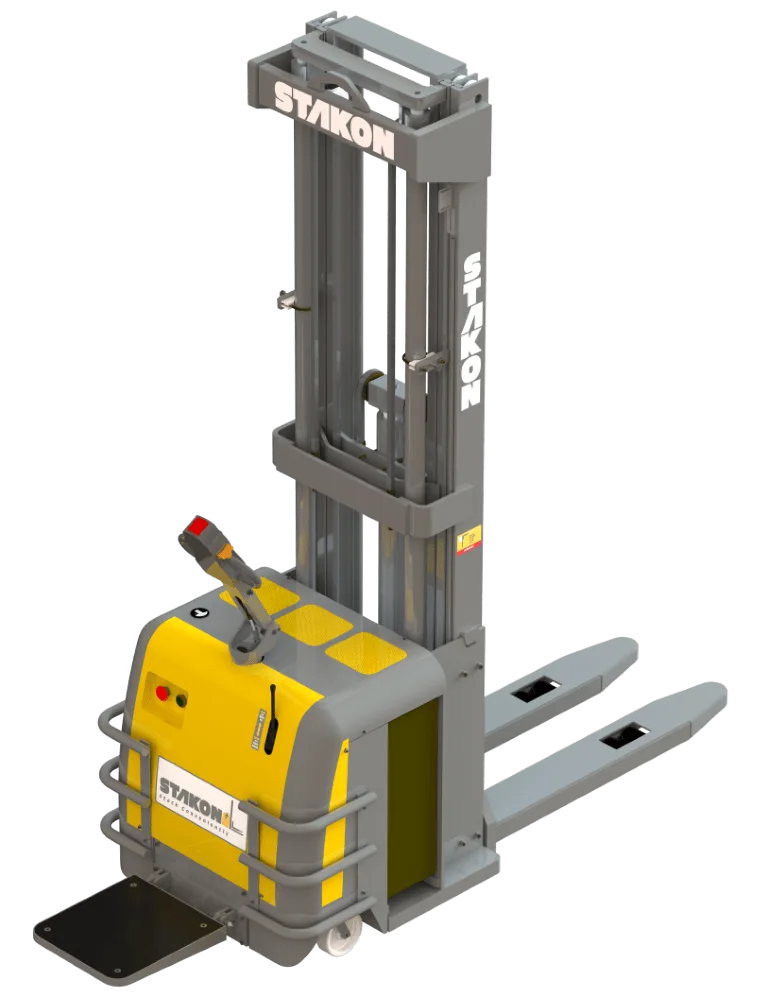

STAKON

FE 1261T

1200 Kg / 6.1 mts

SPECIFICATIONS

A state-of-the-art 3 stage fully electric Stacker which can go up to 6.3 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive & European Hydraulic Pump ensuring trouble free performance for long period

STAKON FE 1261T

1ModelFE-1261T-(S)
2Mast TypeCT-90 Telescopic
3Power-LiftElectric
4Power-TravelElectric
5Load Capacity1200 Kg (Max)
6Load Center500 mm
7Wheel Base1485 mm
8Wt Un-Laden1685 Kg
9Wt. Laden2885 Kg
10Maximum Battery Box (LxWxh)830x225x750 mm
11Battery Voltage (Nominal Capacity 6 Hour Rating)24 V
12Battery Weight316 Kg
13Type of ControllerMOSFET
