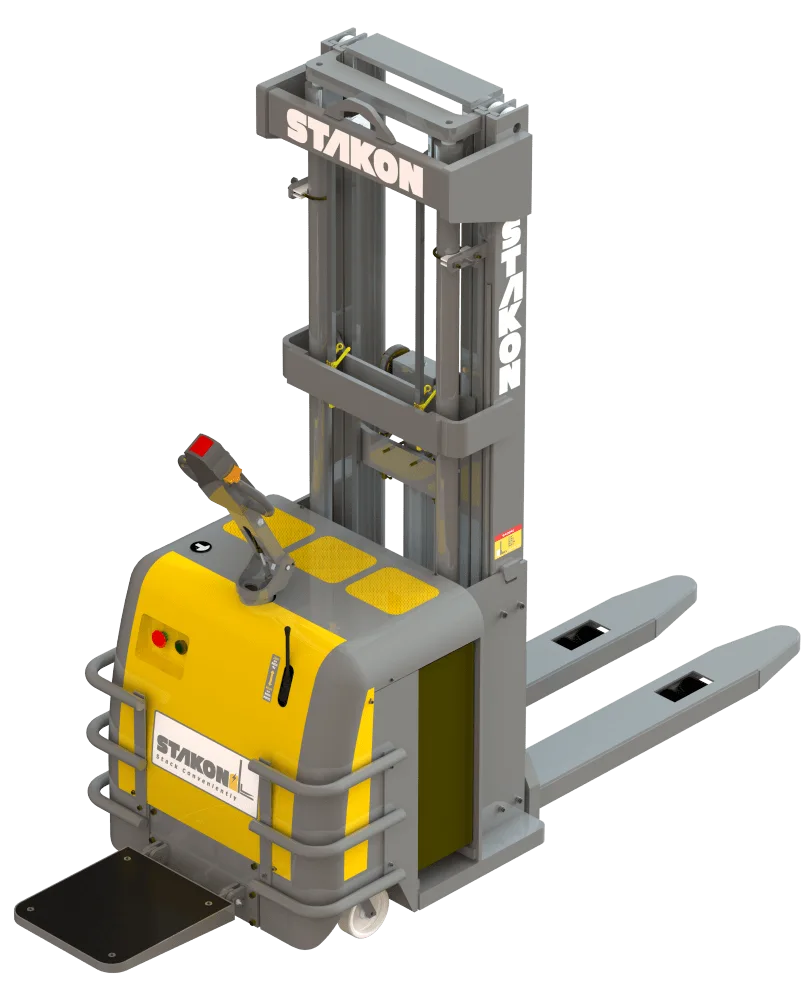

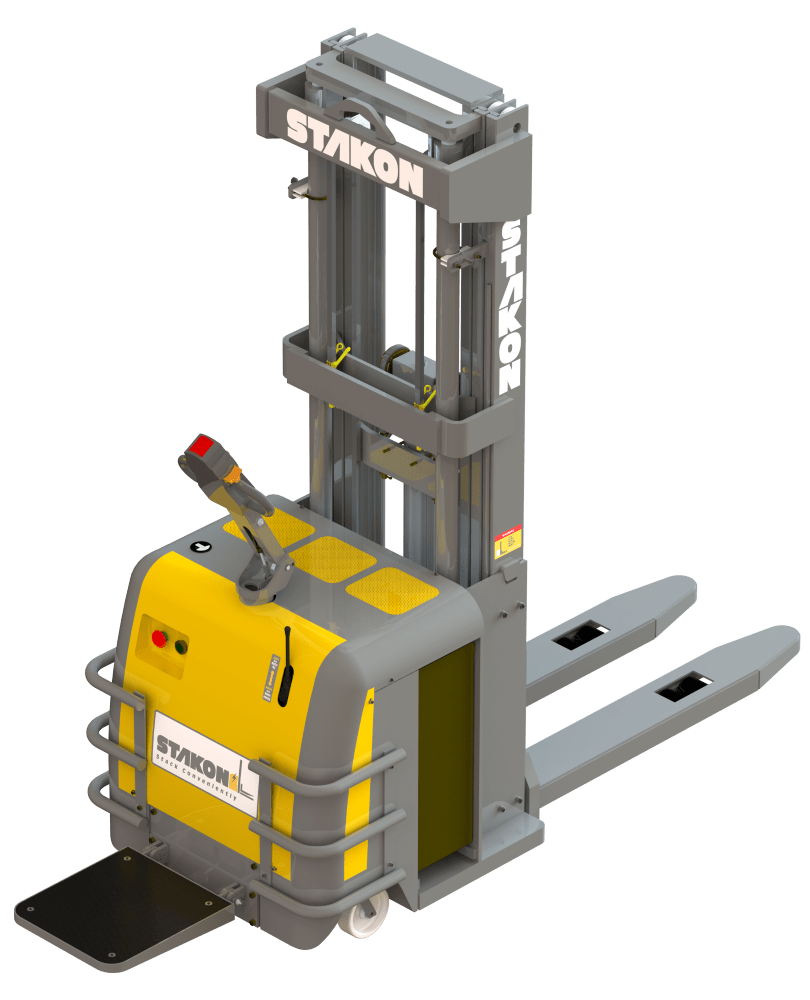

STAKON

FE 1245T

1200 Kg / 4.5 mts

SPECIFICATIONS

A state-of-the-art 3 stage fully electric Stacker which can go up to 4.5 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive & European Hydraulic Pump ensuring trouble free performance for long period

STAKON FE 1245T

1 Model FE-1245T-(S)
2 Mast Type CT-90 Telescopic
3 Power-Lift Electric
4 Power-Travel Electric
5 Load Capacity 1200 Kg (Max)
6 Load Center 500 mm
7 Wheel Base 1485 mm
8 Wt Un-Laden 1685 Kg
9 Wt. Laden 2885 Kg
10 Maximum Battery Box (LxWxh) 830x225x750 mm
11 Battery Voltage (Nominal Capacity 6 Hour Rating) 24 V
12 Battery Weight 316 Kg
13 Type of Controller MOSFET

FE 1245T

IN ACTION

Get a 360 degree view of the product and see what it can do for your business

REQUEST

A DEMO

A full featured description of how our products perform

DOWNLOAD

BROCHURE

Download the FE 1245T Brochure for complete descrption
