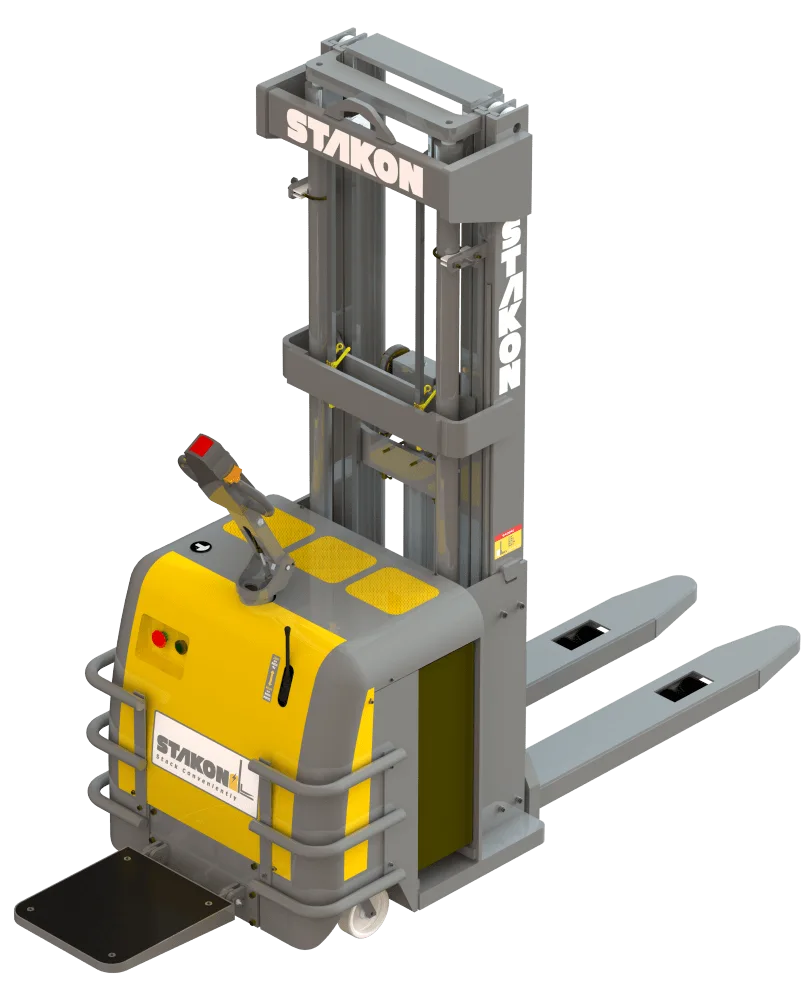

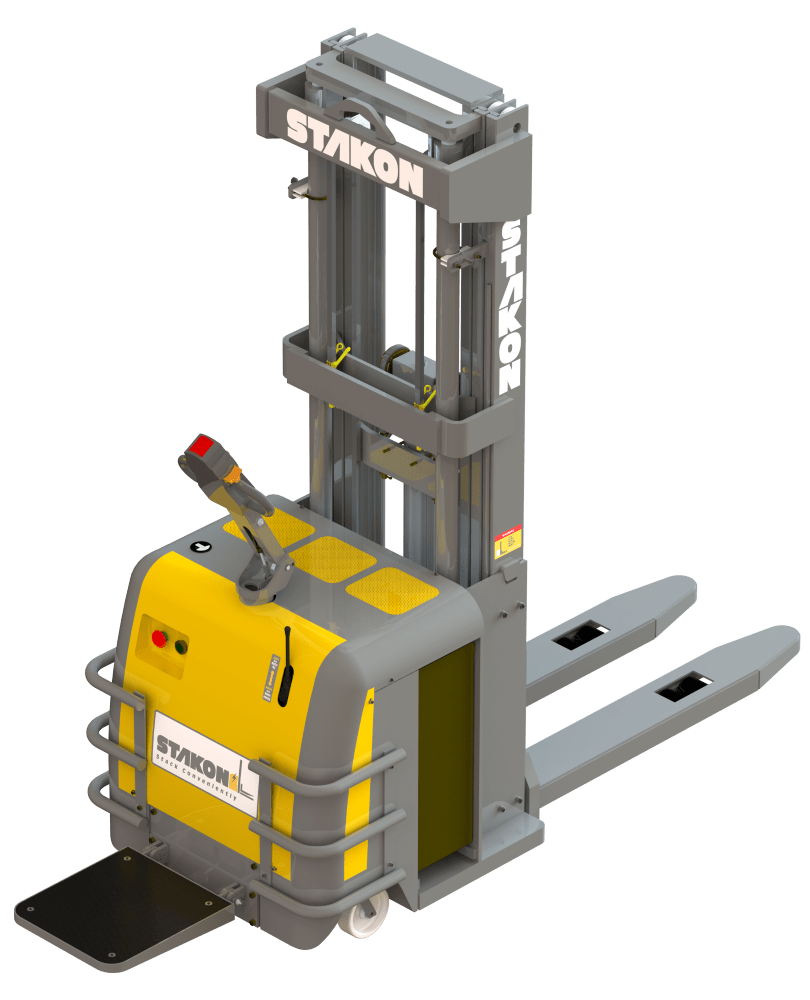

A state-of-the-art 3 stage fully electric Stacker which can go up to 4.5 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive & European Hydraulic Pump ensuring trouble free performance for long period
STAKON
FE 1245T
1200 Kg / 4.5 mts
SPECIFICATIONS
STAKON FE 1245T
| 1 | Model | FE-1245T-(S) |
|---|---|---|
| 2 | Mast Type | CT-90 Telescopic |
| 3 | Power-Lift | Electric |
| 4 | Power-Travel | Electric |
| 5 | Load Capacity | 1200 Kg (Max) |
| 6 | Load Center | 500 mm |
| 7 | Wheel Base | 1485 mm |
| 8 | Wt Un-Laden | 1685 Kg |
| 9 | Wt. Laden | 2885 Kg |
| 10 | Maximum Battery Box (LxWxh) | 830x225x750 mm |
| 11 | Battery Voltage (Nominal Capacity 6 Hour Rating) | 24 V |
| 12 | Battery Weight | 316 Kg |
| 13 | Type of Controller | MOSFET |
