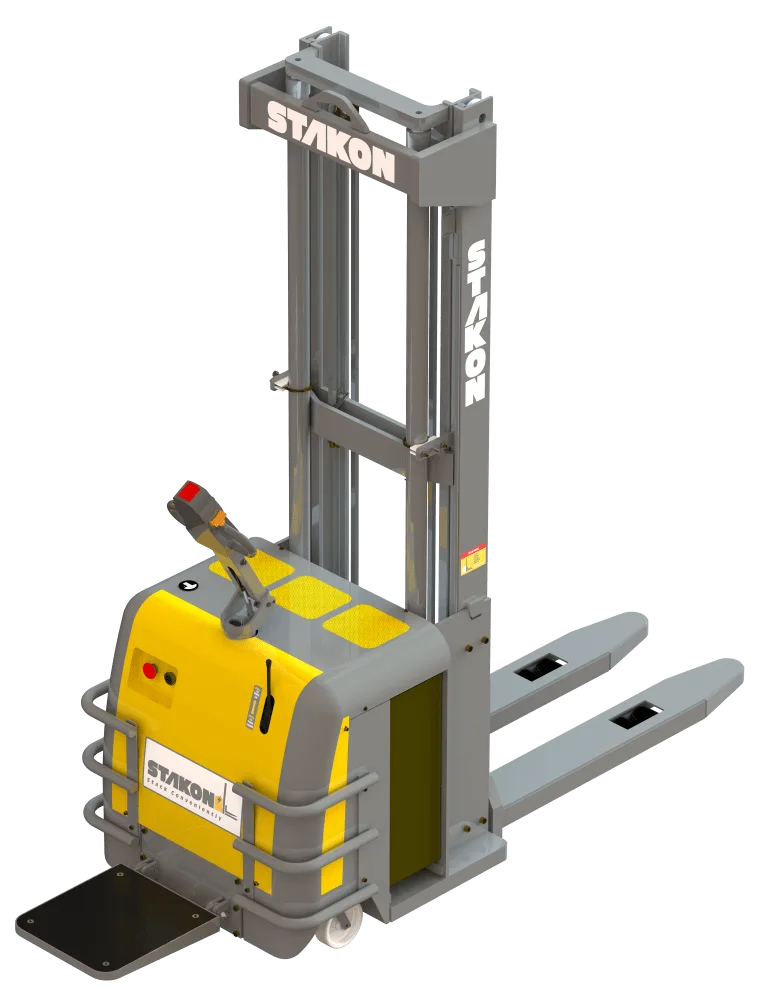

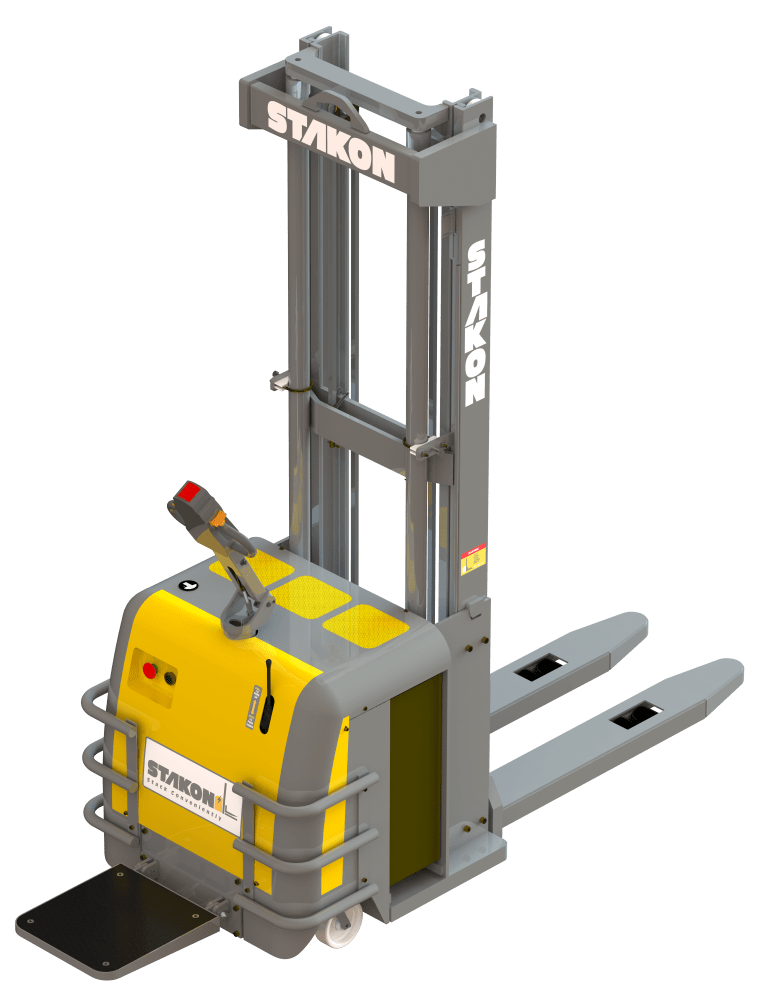

A state of the art 2 stage fully electric Stacker which can go up to 3.6 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive and European Hydraulic Pump ensuring trouble free performance for long period
STAKON
FE 1236D
1200 Kg / 3.6 mts
SPECIFICATIONS
STAKON FE 1236D
| 1 | Model | FE-1236D-(S) |
|---|---|---|
| 2 | Mast Type | CT-90 Telescopic |
| 3 | Power-Lift | Electric |
| 4 | Power-Travel | Electric |
| 5 | Load Capacity | 1200 Kg (Max) |
| 6 | Load Center | 500 mm |
| 7 | Wheel Base | 1485 mm |
| 8 | Wt Un-Laden | 1280 Kg |
| 9 | Wt. Laden | 2480 Kg |
| 10 | Maximum Battery Box (LxWxh) | 830x225x750 mm |
| 11 | Battery Voltage (Nominal Capacity 6 Hour Rating) | 24 V |
| 12 | Battery Weight | 316 Kg |
| 13 | Type of Controller | MOSFET |
