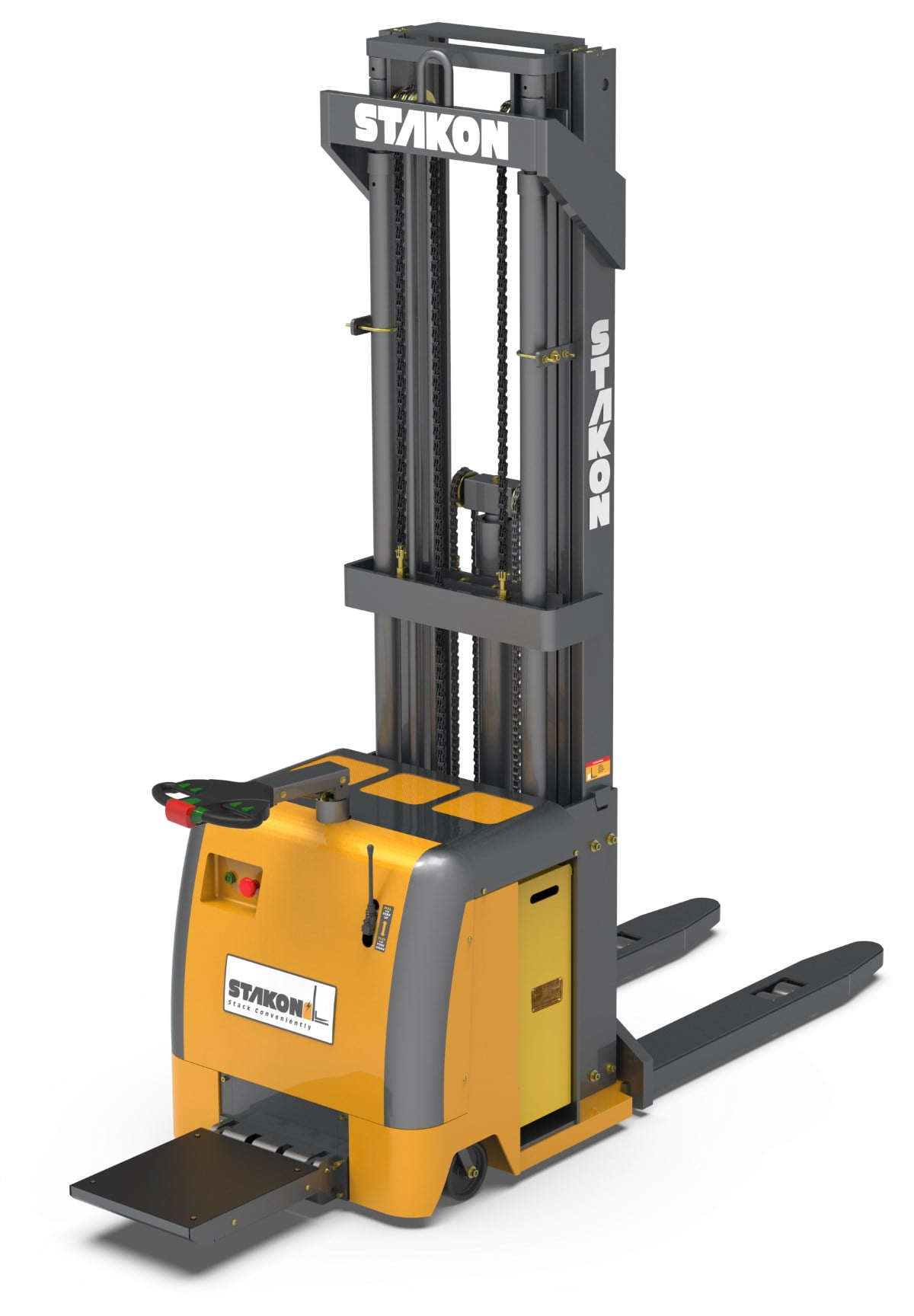

STAKON FE 1200T

A state-of-the-art 3 stage fully electric Stacker which can go up to 6.3 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive & European Hydraulic Pump ensuring trouble free performance for long period.

SPECIFICATIONS

STAKON FE 1200T

1 Model FE-1263T-(S)
2 Mast Type CTT-90 Telescopic
3 Lift Electric
4 Travel Electric
5 Load Capacity 1200 Kg (Max)
6 Load Center 500 mm
7 Wheel Base 1485 mm
8 Wt Un-Laden 1685 Kg
9 Wt. Laden 2885 Kg
10 Maximum Battery Box (LxWxh) 830x225x750 mm
11 Battery Voltage (Nominal Capacity 6 Hour Rating) 24 Volt
12 Battery Weight 316 Kg
13 Type of Controller MOSFET
