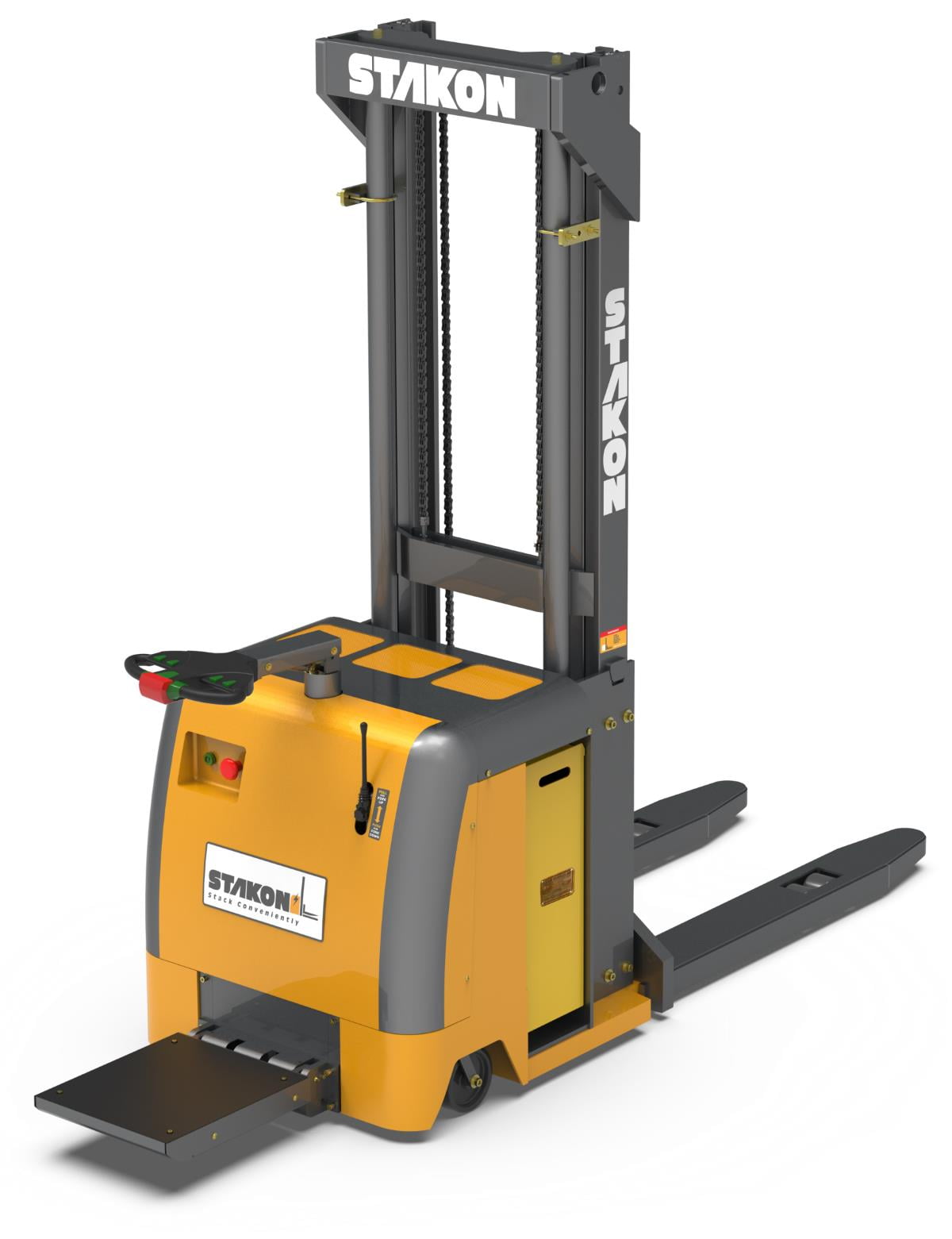

STAKON FE 1200D

A state of the art 2 stage fully electric Stacker which can go up to 3.6 meters height without any deflection at the top. The machine is fitted with Curtis Control, AC drive and European Hydraulic Pump ensuring trouble free performance for long period.

SPECIFICATIONS

STAKON FE 1200D

1 Model FE-1236D-(S)
2 Mast Type CT-90 Telescopic
3 Lift Electric
4 Travel Electric
5 Load Capacity 1200 Kg (Max)
6 Load Center 500 mm
7 Wheel Base 1485 mm
8 Wt Un-Laden 1280 Kg
9 Wt. Laden 2480 Kg
10 Maximum Battery Box (LxWxh) 830x225x750 mm
11 Battery Voltage (Nominal Capacity 6 Hour Rating) 24 Volt
12 Battery Weight 316 Kg
13 Type of Controller MOSFET
